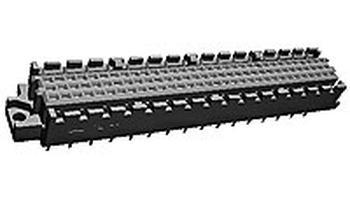

536153-5
Manufacturer
TE Connectivity / AMP
Description
Eurocard Non-RoHS Compliant 1999 POLARIZED HOUSING DIN Connector UL94V-0 1.5A 30.0muin 0.76mum
Datasheet
DownloadProduct Attributes
Type
China RoHS
Circuit Application
Connector Type
Contact Current Rating
Contact Gender
Contact Material
Contact Plating
Contact Resistance
Current Rating
ELV
Flammability Rating
Height
Housing Color
Housing Material
Insulation Resistance
Lead Length
Lifecycle Status
Make First / Break Last
Max Current Rating
Max Operating Temperature
Min Operating Temperature
Mount
Number of Columns
Number of Contacts
Number of Pins
Number of Ports
Number of Positions
Number of Rows
Number of Signal Positions
Operating Force
Packaging
PCB Mounting Orientation
PCB Thickness
Pitch
Plating Thickness
RoHS
Row Spacing
Sealable
Shielding
Tail Length
Terminal Pitch
Termination
Termination Post Length
Description
Non-Compliant
Signal
Receptacle
1.5 A
Female
Bronze
Gold
15 mΩ
1.5 A
Compliant
UL94 V-0
11.5 mm
Grey
Polyester
1 TΩ
4.572 mm
Production (Last Updated: 8 months ago)
No
1.5 A
105 °C
-55 °C
Through Hole
32
96
96
1
96
3
96
945.2 mN
Bulk
Vertical
1.567205 mm
2.54 mm
759.99848 nm
Non-Compliant
2.54 mm
No
No
4.57 mm
2.54 mm
Solder
4.57 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
