5645946-2
Manufacturer
TE Connectivity AMP Connectors
Description

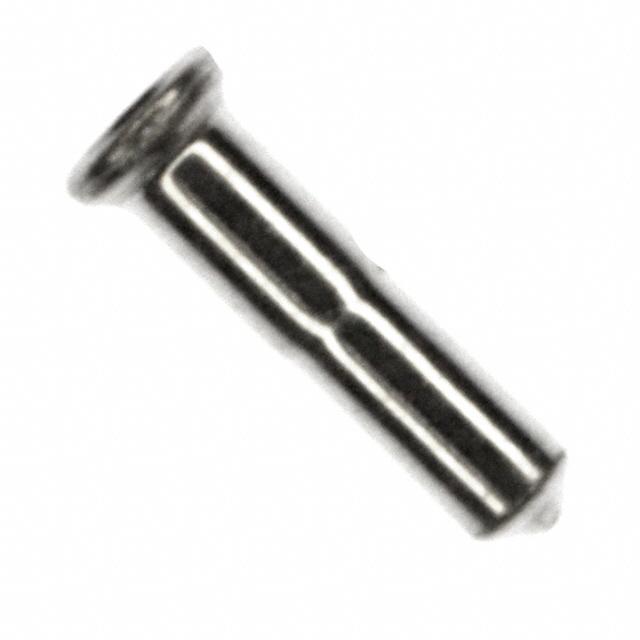

TE CONNECTIVITY - AMP - 5645946-2 - Turret Solder / Press Mount Terminal, Non Insulated, Gold, 4.67 mm
Datasheet
DownloadProduct Attributes
Type
Tail Type
Termination
Length - Overall
Accepts Pin Diameter
Hole Diameter
Flange Diameter
Socket Depth
Contact Material
Contact Plating
Contact Finish Thickness - Mating
Description
No Tail
Solder
0.184" (4.67mm)
0.012" ~ 0.021" (0.30mm ~ 0.53mm)
0.043" ~ 0.046" (1.09mm ~ 1.17mm)
0.066" (1.68mm)
0.100" ~ 0.170" (2.54mm ~ 4.32mm)
Beryllium Copper
Gold
30.0µin (0.76µm)
₹85.55
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹72.38
₹723.76
25
₹67.55
₹1688.84
50
₹64.62
₹3230.86
100
₹60.28
₹6028.30
500
₹52.25
₹26126.19
1000
₹49.70
₹49704.47
Product Attributes
Type
Tail Type
Termination
Length - Overall
Accepts Pin Diameter
Hole Diameter
Flange Diameter
Socket Depth
Contact Material
Contact Plating
Contact Finish Thickness - Mating
Description
No Tail
Solder
0.184" (4.67mm)
0.012" ~ 0.021" (0.30mm ~ 0.53mm)
0.043" ~ 0.046" (1.09mm ~ 1.17mm)
0.066" (1.68mm)
0.100" ~ 0.170" (2.54mm ~ 4.32mm)
Beryllium Copper
Gold
30.0µin (0.76µm)
