569-0101-111F
Manufacturer
Dialight
Description

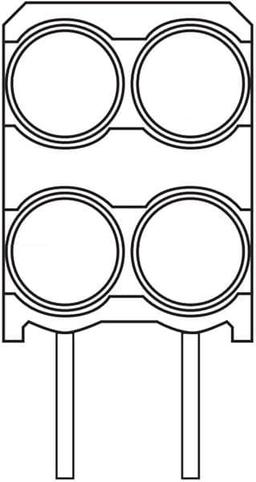

569 Series Bi Level Red 3 mm 60 Diffused 10 mcd LED Circuit Board Indicator
Datasheet
DownloadProduct Attributes
Type
Color
Current
Depth
Forward Current
Forward Voltage
Height
Illumination Color
Lead Free
Length
Lens Color
Lens Style
Luminous Intensity
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Contacts
Number of Elements
Number of LEDs
Number of Pins
Packaging
Power Dissipation
Radiation Hardening
REACH SVHC
Reverse Voltage
RoHS
Schedule B
Test Current
Viewing Angle
Voltage Rating
Wavelength
Width
Description
Red
20 mA
18.54 mm
10 mA
2 V
8.89 mm
Red
Lead Free
6.6 mm
Red
Circular, Colored, Diffused, Tinted
10 mcd
100 °C
100 mW
-55 °C
Through Hole
8
4
4
8
Bulk
100 mW
No
No SVHC
5 V
Compliant
8541402000, 8541402000|8541402000, 8541402000|8541402000|8541402000, 8541402000|8541402000|8541402000|8541402000
10 mA
60 °
2 V
635 nm
6.6 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹348.57
Total Price
₹348.57
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹348.57
₹348.57
10
₹348.21
₹3482.11
25
₹230.30
₹5757.57
50
₹230.29
₹11514.25
100
₹200.81
₹20080.80
500
₹176.74
₹88371.36
