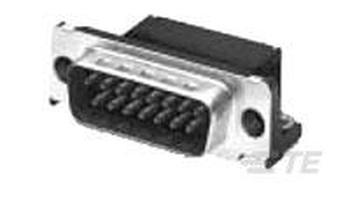

5747833-4
Manufacturer
TE Connectivity
Description
Conn D-Sub PIN 15 POS 1.37mm Solder RA Thru-Hole 15 Terminal 1 Port Tube
Datasheet
DownloadProduct Attributes
Type
Approvals
Body Material
Case/Package
China RoHS
Circuit Application
Color
Connector Type
Contact Current Rating
Contact Gender
Contact Material
Contact Plating
Contact Shape
Current Rating
Depth
Dielectric Material
ELV
Flammability Rating
Gender
Hole Diameter
Housing Color
Housing Material
Lead Free
Lead Length
Length
Lifecycle Status
Manufacturer Lifecycle Status
Material
Mating Connector Lock
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Ports
Number of Positions
Number of Rows
Number of Terminals
Orientation
PCB Mounting Orientation
PCB Mount Retention
PCB Thickness
Pitch
Plating
Plating Thickness
Preloaded
REACH SVHC
RoHS
Row Spacing
Sealable
Shell Finish
Shell Material
Shielding
Terminal Pitch
Termination
Voltage Rating
Description
CSA, UL
Metal
Metal
Compliant
Signal
Black
Plug
6 A
Male
Brass
Gold
Round
6 A
24.51 mm
Polyethylene
Compliant
UL94 V-0
Male
3.18 mm
Black
Thermoplastic
Lead Free
3.175 mm
39.14 mm
Production (Last Updated: 1 week ago)
ACTIVE (Last Updated: 1 week ago)
Metal
With
105 °C
-55 °C
Through Hole
15
15
1
15
2
15
Right Angle
Right Angle
With
1.57 mm
2.7432 mm
Tin
762 nm
Yes
Yes
Compliant
2.8448 mm
No
Tin
Steel
No
2.74 mm
Solder
125 V
In Stock
Quantity
MOQ : 1
Per Unit Price
₹1125.73
Total Price
₹1125.73
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1125.73
₹1125.73
10
₹938.64
₹9386.40
25
₹938.57
₹23464.21
50
₹892.72
₹44636.06
100
₹851.04
₹85103.82
