598-8230-107F
Manufacturer
Dialight
Description

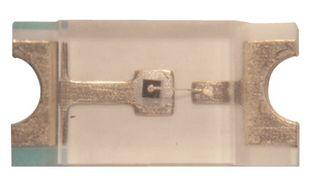

LED Uni-Color Orange 2-Pin Chip 1206(3216Metric) T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Color
Depth
Dominant Wavelength
Forward Current
Forward Voltage
Height
Illumination Color
Lead Free
Length
Lens Color
Lens Style
Lifecycle Status
Luminous Intensity
Max Operating Temperature
Min Operating Temperature
Mount
Number of Circuits
Number of Elements
Number of LEDs
Number of Pins
Number of Terminals
Power Dissipation
Radiation Hardening
REACH SVHC
Reverse Voltage
RoHS
Schedule B
Shape
Terminal Pitch
Test Current
Viewing Angle
Wavelength
Width
Description
1206
1206
3216
Orange
1.6 mm
605 nm
25 mA
2.4 V
680 µm
Orange
Lead Free
3.2 mm
Clear
Clear
Production (Last Updated: 7 months ago)
110 mcd
85 °C
-30 °C
Surface Mount
1
1
1
2
2
60 mW
No
Yes
5 V
Compliant
8541402000, 8541402000|8541402000|8541402000|8541402000|8541402000
Rectangular
3.5 mm
20 mA
140 °
610 nm
1.6 mm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹36.46
Total Price
₹109.37
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹109.37
₹109.37
10
₹21.96
₹219.63
25
₹21.96
₹549.08
50
₹24.17
₹1208.42
100
₹12.65
₹1265.33
500
₹12.08
₹6042.11
1000
₹9.90
₹9895.02
