6N136
Manufacturer
Vishay
Description

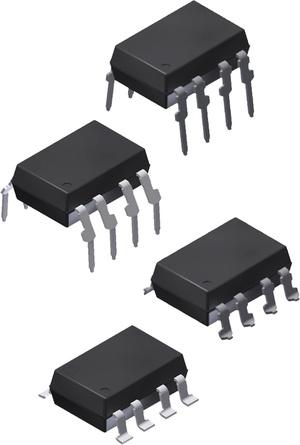

6N136 Series Single Channel 15 V 5300 Vrms Transistor Optocoupler - DIP-8
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Approvals
Case/Package
Collector Emitter Breakdown Voltage
Contact Plating
Current Transfer Ratio
Data Rate
Fall Time
Forward Current
Forward Voltage
Height
Input Current
Isolation Voltage
Lead Free
Max Collector Current
Max Input Current
Max Operating Temperature
Max Output Voltage
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Output Current
Output Current per Channel
Output Type
Output Voltage
Power Dissipation
Radiation Hardening
REACH SVHC
Reverse Breakdown Voltage
Reverse Voltage
Reverse Voltage (DC)
Rise Time
RoHS
Schedule B
Description
100 °C
CSA, UL, VDE
DIP
15 V
Tin
35 %
1 Mbps
5 ns
16 mA
1.33 V
4.65 mm
1.6 mA
5.3 kV
Lead Free
8 mA
25 mA
100 °C
15 V
100 mW
-55 °C
Through Hole
1
1
8
8 mA
8 mA
Phototransistor
15 V
100 mW
No
Unknown
5 V
5 V
5 V
5 ns
Compliant
8541408000, 8541408000|8541408000|8541408000|8541408000|8541408000
₹138.16
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹138.16
₹138.16
10
₹80.34
₹803.37
25
₹77.60
₹1939.91
50
₹74.56
₹3727.88
100
₹71.52
₹7151.88
500
₹63.62
₹31811.10
1000
₹61.88
₹61875.96
