7-1437539-6

Manufacturer

TE Connectivity

Description

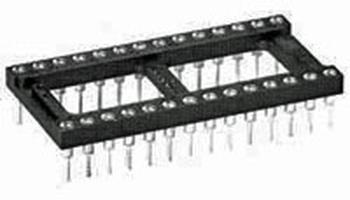

IC Socket, DIP24, 24 Contact(s), 2.54mm Term Pitch, 0.295inch Row Spacing, Solder

Datasheet

download datasheetDownload

Product Attributes

Type

Body Material

Contact Material

Contact Plating

Contact Resistance

Depth

ELV

Gender

Housing Material

Insulation Material

Insulation Resistance

Lead Free

Lead Length

Lead Pitch

Length

Max Operating Temperature

Min Operating Temperature

Mount

Number of Contacts

Number of Pins

Number of Positions

Number of Rows

Orientation

Pitch

Radiation Hardening

RoHS

Row Spacing

Terminal Pitch

Termination

Voltage Rating

Voltage Rating (DC)

Description

Polyester

Copper

Gold

10 mΩ

10.16 mm

Compliant

Female

Polyester

Polyester

5 GΩ

Contains Lead

3.18 mm

2.54 mm

30.48 mm

105 °C

-55 °C

Through Hole, Vertical

24

24

24

2

Straight

2.54 mm

No

Compliant

7.62 mm

2.54 mm

Solder, Through Hole

1 kV

1 kV

In Stock

Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹423.26

Total Price

₹423.26

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹423.26

₹423.26
