7-215464-4

Manufacturer

TE Connectivity / AMP

Description

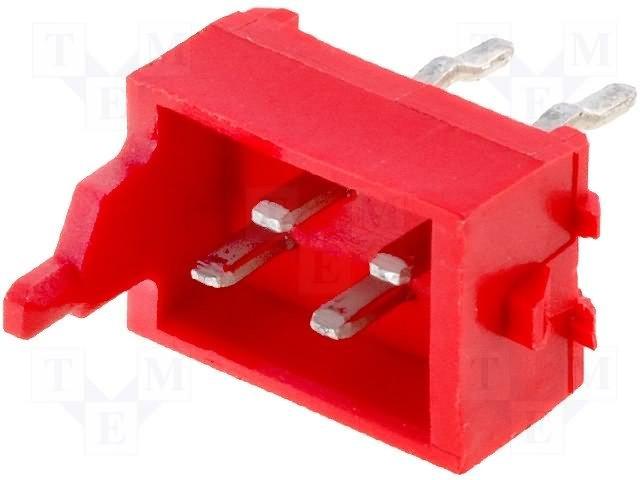

Conn Shrouded Header (4 Sides) HDR 4 POS 1.27mm Solder ST Top Entry Thru-Hole Box/Carton

Datasheet

download datasheetDownload

Product Attributes

Type

Color

Connector Type

Contact Current Rating

Contact Gender

Contact Plating

Contact Resistance

Depth

ELV

Flammability Rating

Gender

Height

Housing Color

Housing Material

Insulation Material

Insulation Resistance

Lead Length

Lead Pitch

Lifecycle Status

Mating Connector Lock

Max Operating Temperature

Min Operating Temperature

Mount

Number of Contacts

Number of Poles

Number of Positions

Number of Rows

Operating Supply Voltage

Orientation

PCB Mounting Orientation

PCB Mount Retention

PCB Thickness

Pitch

Plating Thickness

Radiation Hardening

RoHS

Termination

Voltage Rating

Voltage Rating (AC)

Width

Wire/Cable Gauge

Description

Red

Connector, Pin, Plug

1.5 A

Male

Tin

10 mΩ

5 mm

Compliant

UL94 V-0

Male

6.9 mm

Red

Polyester

PBT

1 GΩ

3.0988 mm

1.27 mm

Production (Last Updated: 1 week ago)

Without

105 °C

-40 °C

Through Hole

4

4

4

2

100 V

Straight, Vertical

Vertical

With

1.6 mm

1.27 mm

5 µm

No

Compliant

Through Hole

230 V

230 V

10 mm

28 AWG

In Stock


Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹109.53

Total Price

₹109.53


delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

109.53

109.53

10

98.88

988.79

25

98.86

2471.53

50

98.88

4943.95

100

75.33

7532.67

500

75.33

37663.36

1000

72.42

72420.01
