744066100
Manufacturer
Wurth Elektronik
Description

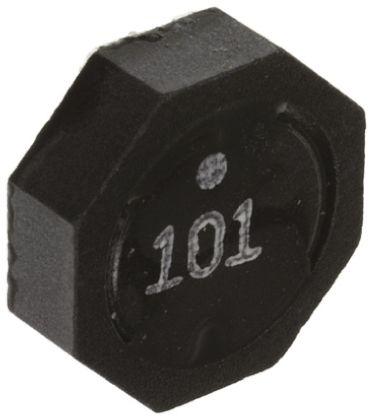

Power Choke Shielded Wirewound 10uH 30% 100KHz Ferrite 3.6A 35mOhm DCR T/R
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Ambient Temperature Range Low
Case/Package
Composition
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
Number of Pins
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
95 °C
-40 °C
Nonstandard
Wirewound
Ferrite
3.6 A
25 mΩ
10 mm
3.8 mm
4.0894 mm
10 µH
30 %
10 mm
3.6 A
125 °C
-40 °C
Surface Mount
2
28 mΩ
3.6 A
Compliant
4 A
20 MHz
35 mΩ
Shielded
SMD/SMT
100 kHz
30 %
1.273007 g
10 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹146.90
Total Price
₹146.90
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹146.90
₹146.90
10
₹143.70
₹1436.97
25
₹143.70
₹3592.42
50
₹131.99
₹6599.48
100
₹131.99
₹13198.96
500
₹118.16
₹59079.90
1000
₹128.66
₹128663.06
