744212100
Manufacturer
Wurth Elektronik
Description

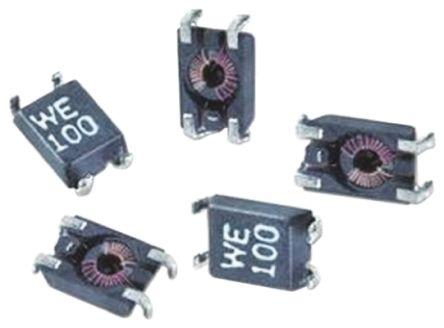

WE-SL1 SMT COMMON MODE LINE FILTER Data Line Filter, 2 Function(s), 80V, 0.3A, 4 Pin(s)
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Ambient Temperature Range Low
Case/Package
Core Material
Current
Current Rating
DC Resistance (DCR)
Depth
Height
Impedance
Inductance
Inductance Tolerance
Length
Max Current Rating
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
Number of Lines
Number of Pins
Packaging
REACH SVHC
RoHS
Self Resonant Frequency
Termination
Test Frequency
Tolerance
Voltage Rating
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
85 °C
-40 °C
SMD/SMT
Ferrite
300 mA
300 mA
240 mΩ
3.6 mm
1.65 mm
1.2 kΩ
10 µH
50 %
6.3 mm
12 A
300 mA
105 °C
-40 °C
Surface Mount
2
4
Digi-Reel®
No SVHC
Compliant
100 kHz
SMD/SMT
100 kHz
50 %
80 V
80 V
80 V
3.6 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹376.31
Total Price
₹376.31
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹376.31
₹376.31
10
₹373.14
₹3731.42
25
₹373.18
₹9329.44
50
₹350.97
₹17548.45
100
₹343.56
₹34355.72
500
₹327.70
₹163849.53
1000
₹313.48
₹313481.05
