7443631000
Manufacturer
Würth Elektronik Midcom
Description

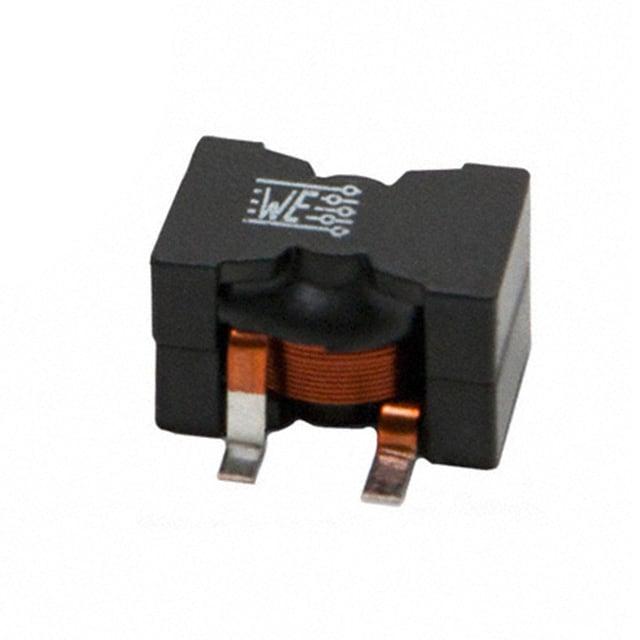

WURTH ELEKTRONIK - 7443631000 - Power Inductor (SMD), 10 H, 16 A, Shielded, 23 A, WE-HCF Series
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Manganese Zinc Ferrite (MnZn)
10 µH
±15%
16 A
23A
Shielded
7.96mOhm
13MHz
AEC-Q200
-40°C ~ 125°C
100 kHz
Surface Mount
Nonstandard
0.846" L x 0.827" W (21.50mm x 21.00mm)
0.551" (14.00mm)
₹684.40
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹684.40
₹684.40
10
₹675.48
₹6754.80
25
₹674.21
₹16855.30
50
₹621.96
₹31097.97
100
₹539.11
₹53910.53
500
₹539.11
₹269552.70
1000
₹628.71
₹628705.28
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Manganese Zinc Ferrite (MnZn)
10 µH
±15%
16 A
23A
Shielded
7.96mOhm
13MHz
AEC-Q200
-40°C ~ 125°C
100 kHz
Surface Mount
Nonstandard
0.846" L x 0.827" W (21.50mm x 21.00mm)
0.551" (14.00mm)
