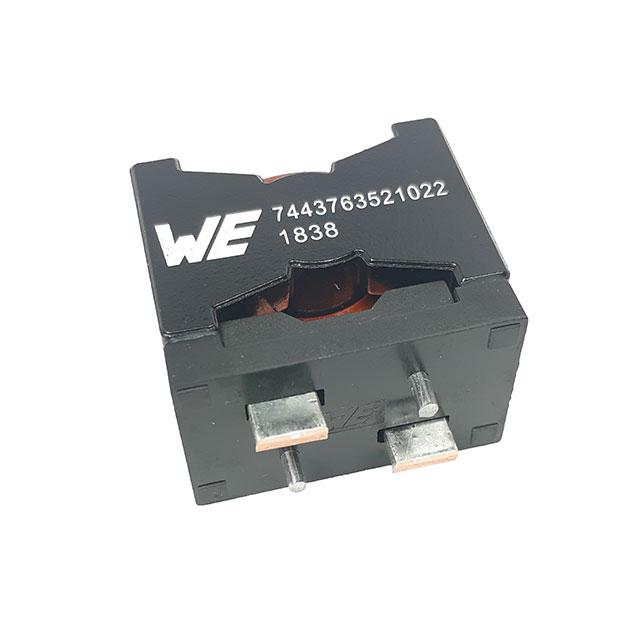

7443763521022
Manufacturer
Würth Elektronik Midcom
Description
2.2 H Shielded Drum Core, Wirewound Inductor 75 A 0.4mOhm Max Nonstandard
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Manganese Zinc Ferrite (MnZn)
2.2 µH
±20%
75 A
120A
Shielded
0.4mOhm Max
30MHz
-40°C ~ 125°C
100 kHz
Through Hole
Nonstandard
1.417" L x 0.846" W (36.00mm x 21.50mm)
1.378" (35.00mm)
₹1403.22
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹1403.22
₹1403.22
10
₹1094.79
₹10947.92
25
₹1094.79
₹27369.81
50
₹1094.79
₹54739.61
100
₹1094.79
₹109479.23
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Manganese Zinc Ferrite (MnZn)
2.2 µH
±20%
75 A
120A
Shielded
0.4mOhm Max
30MHz
-40°C ~ 125°C
100 kHz
Through Hole
Nonstandard
1.417" L x 0.846" W (36.00mm x 21.50mm)
1.378" (35.00mm)
