7447709100
Manufacturer
Wurth Elektronik
Description

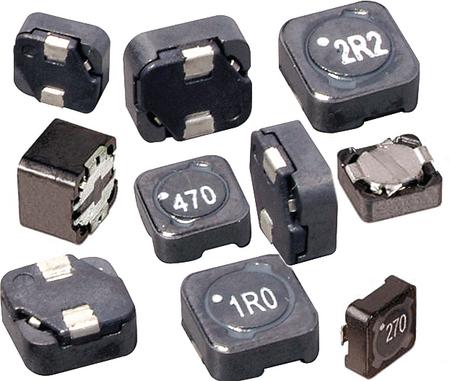

Power Choke Shielded Wirewound 10uH 20% 1KHz Ferrite 7.1A 21mOhm DCR T/R
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Ambient Temperature Range Low
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead Free
Lead Pitch
Length
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
Number of Pins
RMS Current (Irms)
RoHS
Saturation Current
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
85 °C
-40 °C
Nonstandard
1210
3225
Wirewound
Ferrite
7.1 A
13 mΩ
12 mm
10 mm
10.0076 mm
10 µH
20 %
Lead Free
7 mm
12 mm
7.1 A
125 °C
-40 °C
Surface Mount
2
7.1 A
Compliant
10.5 A
21 MHz
21 mΩ
Shielded
SMD/SMT
1 kHz
20 %
4.535924 g
12 mm
₹245.88
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹245.88
₹245.88
10
₹225.66
₹2256.57
25
₹218.75
₹5468.68
50
₹211.83
₹10591.32
100
₹199.05
₹19905.21
500
₹160.02
₹80008.51
1000
₹145.97
₹145969.95
