7447709470
Manufacturer
Würth Elektronik Midcom
Description

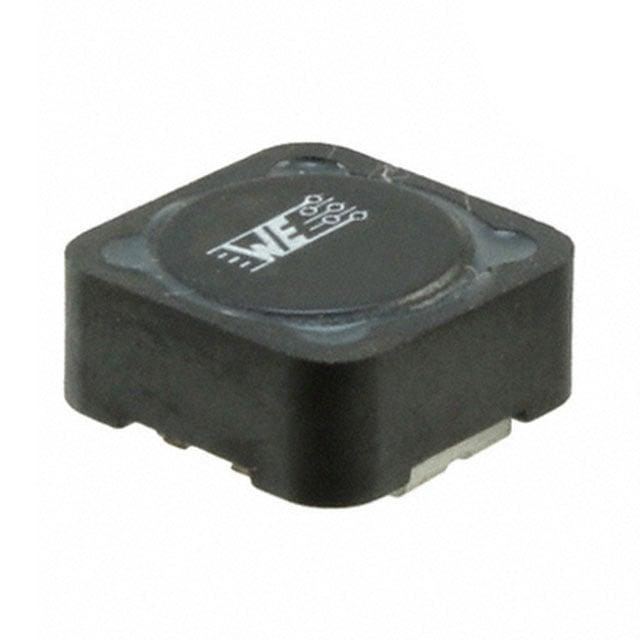

WURTH ELEKTRONIK - 7447709470 - Power Inductor (SMD), 47 H, 3.8 A, Shielded, 4.5 A, WE-PD Series
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Manganese Zinc Ferrite (MnZn)
47 µH
±20%
3.8 A
4.5A
Shielded
60mOhm Max
6.5MHz
AEC-Q200
-40°C ~ 125°C
1 kHz
Surface Mount
Nonstandard
0.472" L x 0.472" W (12.00mm x 12.00mm)
0.394" (10.00mm)
₹327.55
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹327.55
₹327.55
10
₹298.23
₹2982.27
25
₹293.48
₹7336.94
50
₹280.39
₹14019.57
100
₹262.54
₹26254.26
500
₹195.00
₹97501.33
1000
₹178.43
₹178434.50
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Manganese Zinc Ferrite (MnZn)
47 µH
±20%
3.8 A
4.5A
Shielded
60mOhm Max
6.5MHz
AEC-Q200
-40°C ~ 125°C
1 kHz
Surface Mount
Nonstandard
0.472" L x 0.472" W (12.00mm x 12.00mm)
0.394" (10.00mm)
