744771118
Manufacturer
Wurth Elektronik
Description

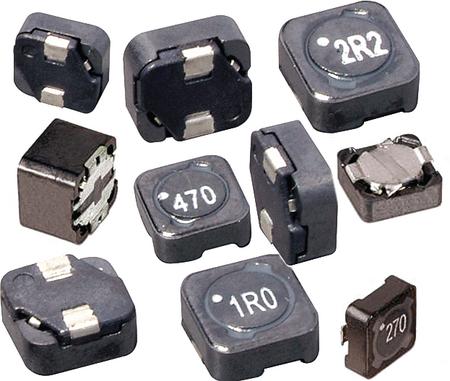

Power Choke Shielded Wirewound 18uH 20% 100KHz Ferrite 4A 0.03Ohm DCR Automotive AEC-Q200 T/R
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Ambient Temperature Range Low
Case/Package
Composition
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
Number of Pins
REACH SVHC
RMS Current (Irms)
RoHS
Saturation Current
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Width
Description
85 °C
-40 °C
Nonstandard
Wirewound
Ferrite
4 A
24 mΩ
12 mm
6 mm
5.9944 mm
18 µH
20 %
12 mm
3.48 A
125 °C
-40 °C
Surface Mount
2
Unknown
3.48 A
Compliant
4.3 A
14.3 MHz
34 mΩ
Shielded
SMD/SMT
1 kHz
20 %
12 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹216.43
Total Price
₹216.43
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹216.43
₹216.43
10
₹208.00
₹2080.01
25
₹207.97
₹5199.15
50
₹187.80
₹9389.78
100
₹168.43
₹16843.24
500
₹132.71
₹66357.36
1000
₹113.28
₹113277.00
Product Attributes
Type
Ambient Temperature Range High
Ambient Temperature Range Low
Case/Package
Composition
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
Number of Pins
REACH SVHC
RMS Current (Irms)
RoHS
Saturation Current
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Width
Description
85 °C
-40 °C
Nonstandard
Wirewound
Ferrite
4 A
24 mΩ
12 mm
6 mm
5.9944 mm
18 µH
20 %
12 mm
3.48 A
125 °C
-40 °C
Surface Mount
2
Unknown
3.48 A
Compliant
4.3 A
14.3 MHz
34 mΩ
Shielded
SMD/SMT
1 kHz
20 %
12 mm
