7447714221
Manufacturer
Wurth Elektronik
Description

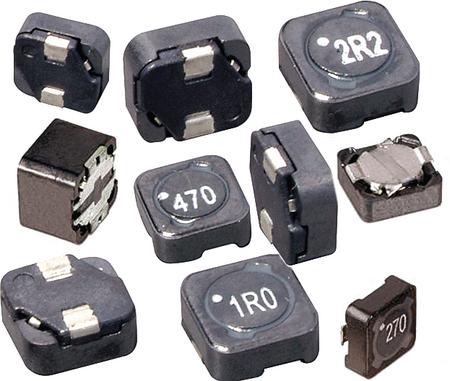

General Purpose Inductor, 220uH, 20%, 1 Element, Manganese-zinc-Core, SMD, 3939
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Ambient Temperature Range Low
Case/Package
Composition
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
Number of Pins
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Width
Description
110 °C
-40 °C
Nonstandard
Wirewound
Ferrite
1 A
366 mΩ
10 mm
5 mm
5.0038 mm
220 µH
20 %
10 mm
1 A
150 °C
-40 °C
Surface Mount
2
Unknown
439 mΩ
1 A
Compliant
1.2 A
4.3 MHz
439 mΩ
Shielded
SMD/SMT
100 kHz
20 %
10 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹215.26
Total Price
₹215.26
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹215.26
₹215.26
10
₹206.88
₹2068.76
25
₹206.84
₹5171.02
50
₹186.78
₹9338.97
100
₹167.52
₹16752.10
500
₹132.00
₹65998.26
1000
₹112.66
₹112664.00
