744776047A
Manufacturer
Würth Elektronik Midcom
Description

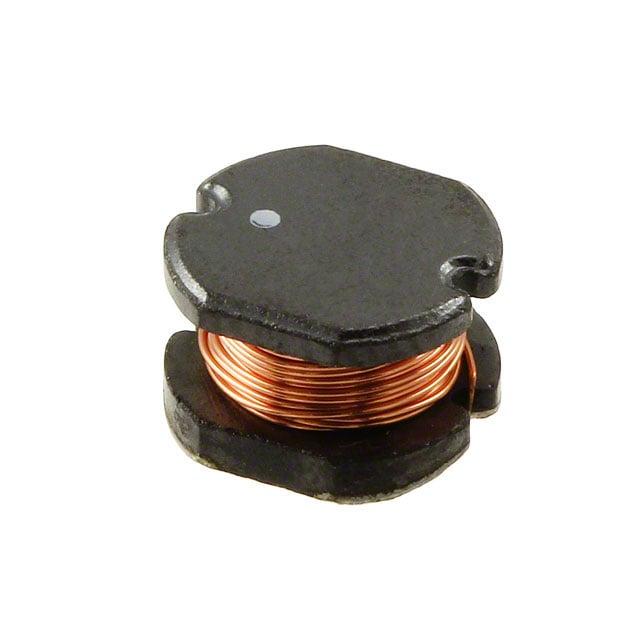

4.7 H Unshielded Drum Core, Wirewound Inductor 4 A 40mOhm Max Nonstandard
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Ferrite
4.7 µH
±20%
4 A
Unshielded
40mOhm Max
33 @ 7.96MHz
40MHz
-40°C ~ 125°C
1 kHz
Surface Mount
Nonstandard
0.374" L x 0.374" W (9.50mm x 9.50mm)
0.228" (5.80mm)
₹310.98
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹310.98
₹310.98
10
₹277.84
₹2778.44
25
₹277.84
₹6946.09
50
₹257.45
₹12872.34
100
₹248.52
₹24852.23
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Ferrite
4.7 µH
±20%
4 A
Unshielded
40mOhm Max
33 @ 7.96MHz
40MHz
-40°C ~ 125°C
1 kHz
Surface Mount
Nonstandard
0.374" L x 0.374" W (9.50mm x 9.50mm)
0.228" (5.80mm)
