7448251201
Manufacturer
Wurth Elektronik
Description

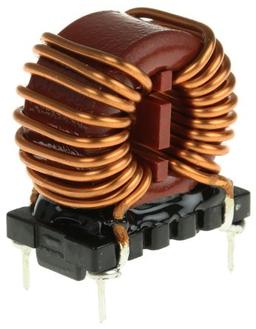

Choke/Filter, Common Mode, WE-CMB Choke Type XL 1mH 12A 9mOhm | Wurth Elektronik 7448251201
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Ambient Temperature Range Low
Case/Package
Current
Current Rating
DC Resistance (DCR)
Depth
Height
Inductance
Inductance Tolerance
Lead Free
Lead Pitch
Length
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
Number of Lines
Number of Pins
Pin Length
REACH SVHC
RoHS
Series Resistance
Termination
Test Frequency
Tolerance
Voltage Rating
Width
Description
70 °C
-40 °C
Radial
12 A
12 A
9 mΩ
22 mm
35 mm
1 mH
30 %
Lead Free
25 mm
31 mm
12 A
125 °C
-40 °C
Radial, Through Hole
2
4
5 mm
No
Compliant
9 mΩ
Radial
10 kHz
30 %
250 V
22 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹606.22
Total Price
₹606.22
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹606.22
₹606.22
10
₹597.99
₹5979.87
25
₹494.18
₹12354.54
50
₹483.69
₹24184.31
100
₹473.18
₹47317.89
500
₹504.49
₹252243.81
1000
₹494.89
₹494887.82
