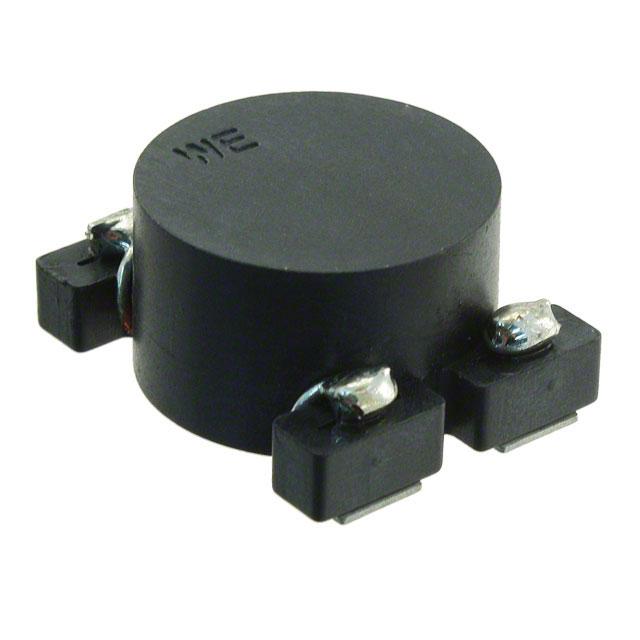

744851470
Manufacturer
Würth Elektronik Midcom
Description
Shielded 2 Coil Inductor Array 18.8 H Inductance - Connected in Series 4.7 H Inductance - Connected in Parallel 14mOhm Max DC Resistance (DCR) -...
Datasheet
DownloadProduct Attributes
Type
Number of Coils
Inductance
Inductance
Tolerance
Current Rating - Parallel
Current Rating - Series
Saturation Current
Current Saturation - Series
DC Resistance (DCR) - Parallel
Shielding
Max Operating Temperature
Mounting Type
Case/Package
Size / Dimension
Height
Description
2
4.7 µH
18.8 µH
±10%
7.2 A
3.6 A
11 A
5.5 A
14mOhm Max
Shielded
-40°C ~ 125°C
Surface Mount
Nonstandard
0.906" L x 0.728" W (23.00mm x 18.50mm)
0.453" (11.50mm)
₹737.93
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹737.93
₹737.93
10
₹722.64
₹7226.36
25
₹722.64
₹18065.89
50
₹693.33
₹34666.40
100
₹693.33
₹69332.79
Product Attributes
Type
Number of Coils
Inductance
Inductance
Tolerance
Current Rating - Parallel
Current Rating - Series
Saturation Current
Current Saturation - Series
DC Resistance (DCR) - Parallel
Shielding
Max Operating Temperature
Mounting Type
Case/Package
Size / Dimension
Height
Description
2
4.7 µH
18.8 µH
±10%
7.2 A
3.6 A
11 A
5.5 A
14mOhm Max
Shielded
-40°C ~ 125°C
Surface Mount
Nonstandard
0.906" L x 0.728" W (23.00mm x 18.50mm)
0.453" (11.50mm)
