744916125
Manufacturer
Würth Elektronik Midcom
Description

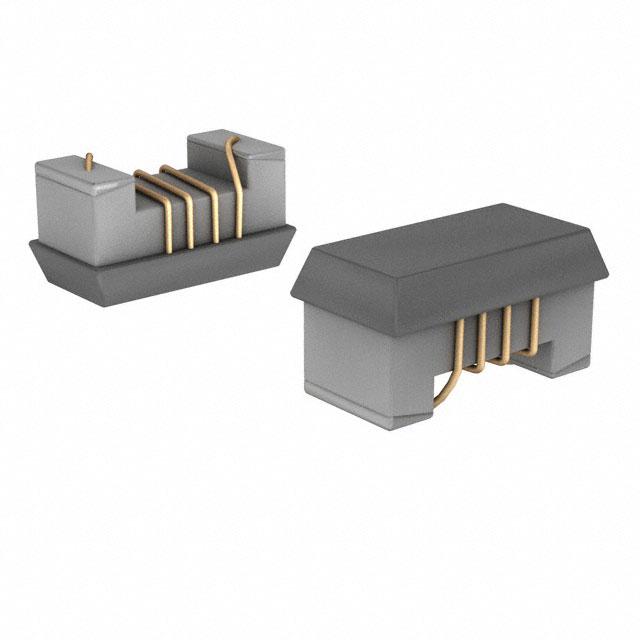

WURTH ELEKTRONIK - 744916125 - Wirewound Inductor, AEC-Q200, 25 nH, 0.3 ohm, 3.15 GHz, 700 mA, 0402 [1005 Metric], WE-KI HC Series
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Ceramic
25 nH
±2%
700 mA
Unshielded
300mOhm Max
26 @ 250MHz
3.15GHz
AEC-Q200
-40°C ~ 125°C
250 MHz
Surface Mount
0402 (1006 Metric)
0402 (1006 Metric)
0.043" L x 0.024" W (1.10mm x 0.60mm)
0.024" (0.60mm)
₹55.99
Out of Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹55.99
₹559.87
25
₹55.99
₹1399.69
50
₹55.99
₹2799.38
100
₹49.69
₹4969.12
500
₹43.95
₹21977.48
1000
₹43.95
₹43954.97
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Ceramic
25 nH
±2%
700 mA
Unshielded
300mOhm Max
26 @ 250MHz
3.15GHz
AEC-Q200
-40°C ~ 125°C
250 MHz
Surface Mount
0402 (1006 Metric)
0402 (1006 Metric)
0.043" L x 0.024" W (1.10mm x 0.60mm)
0.024" (0.60mm)
