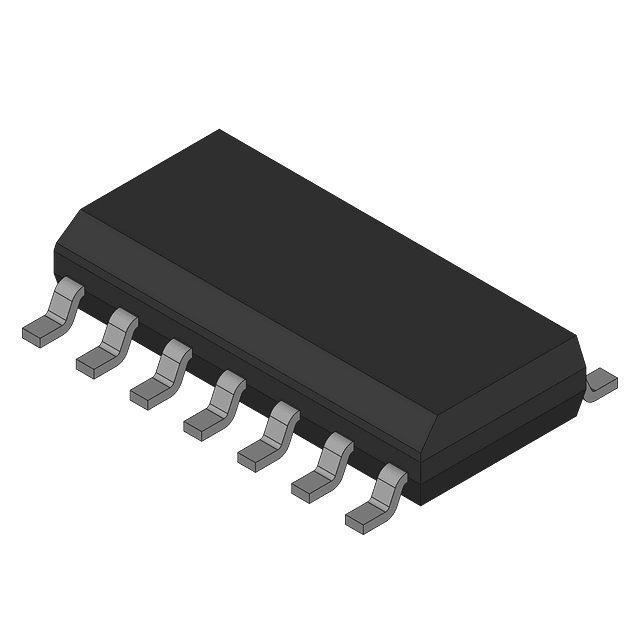

74AC00SJ
Manufacturer
onsemi
Description
NAND 74AC00 EAR99 74AC logic gate circuit 8ns @ 5V 50pF 218.3mg 24mA 24mA 6V
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Contact Plating
Height - Seated (Max)
High Level Output Current
Lead Free
Length
Lifecycle Status
Load Capacitance
Logic Function
Low Level Output Current
Max Operating Temperature
Max Supply Current
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Circuits
Number of Elements
Number of Gates
Number of Inputs
Number of Outputs
Number of Pins
Number of Terminals
Operating Supply Voltage
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schmitt Trigger Input
Terminal Pitch
Turn-On Delay Time
Weight
Width
Description
SOIC
Compliant
Tin
2.1 mm
-24 mA
Lead Free
10.2 mm
Obsolete (Last Updated: 9 months ago)
50 pF
NAND
12 mA
85 °C
20 µA
6 V
-40 °C
2 V
Surface Mount
4
4
4
2
1
14
14
3.3 V
10 ns
2 µA
No
Yes
Compliant
No
1.27 mm
10 ns
218.3 mg
5.3 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹134.98
Total Price
₹134.98
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹134.98
₹134.98
10
₹82.04
₹820.45
