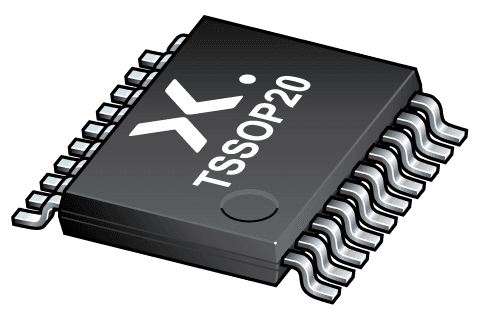

74AHCT240PW,118
Manufacturer
Nexperia
Description
Buffer/Line Driver 3-State Octal TTL 4.55V to 5.5V 20-Pin TSSOP
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Contact Plating
Height - Seated (Max)
High Level Output Current
Length
Lifecycle Status
Load Capacitance
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Channels
Number of Circuits
Number of Elements
Number of Inputs
Number of Outputs
Number of Pins
Number of Ports
Number of Terminals
Operating Supply Voltage
Packaging
Polarity
Propagation Delay
Quiescent Current
REACH SVHC
RoHS
Terminal Pitch
Turn-On Delay Time
Width
Description
TSSOP
Compliant
Gold
1.1 mm
-8 mA
6.5 mm
Production (Last Updated: 7 months ago)
50 pF
Buffer, Inverter
8 mA
RELEASED FOR SUPPLY (Last Updated: 7 months ago)
125 °C
5.5 V
-40 °C
4.5 V
Surface Mount
8
8
1
2
4
8
20
2
20
5 V
Digi-Reel®
Inverting
11.9 ns
4 µA
Yes
Compliant
650 µm
14.4 ns
4.4 mm
In Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹58.09
Total Price
₹116.19
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹116.19
₹116.19
10
₹41.11
₹411.05
25
₹36.72
₹918.05
50
₹36.76
₹1837.86
100
₹32.73
₹3272.58
500
₹32.73
₹16364.68
1000
₹27.87
₹27872.41
