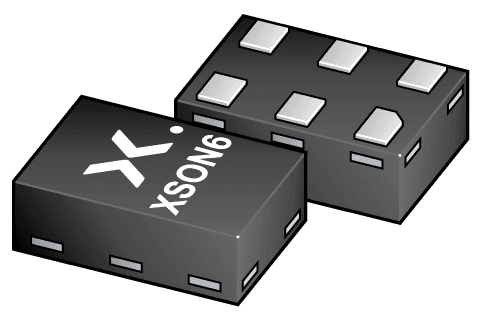

74AUP1G09GM,115
Manufacturer
Nexperia
Description
AND 74AUP1G09 74AUP Tape & Reel (TR) logic gate circuit 12.7ns @ 3.3V 30pF - 4mA 1.6V-2V 125C
Datasheet
DownloadProduct Attributes
Type
Contact Plating
Height - Seated (Max)
Lead Free
Length
Lifecycle Status
Load Capacitance
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Channels
Number of Circuits
Number of Elements
Number of Gates
Number of Inputs
Number of Outputs
Number of Pins
Number of Terminals
Operating Supply Voltage
Packaging
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schmitt Trigger Input
Terminal Pitch
Width
Description
Tin
500 µm
Lead Free
1.45 mm
Production (Last Updated: 6 months ago)
30 pF
AND
1.7 mA
RELEASED FOR SUPPLY (Last Updated: 6 months ago)
125 °C
3.6 V
-40 °C
800 mV
Surface Mount
1
1
1
1
2
1
6
6
1.1 V
Tape & Reel (TR)
24 ns
500 nA
No
Yes
Compliant
Yes
500 µm
1 mm
In Stock
Quantity
MOQ : 4
Per Unit Price
₹27.57
Total Price
₹110.26
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹110.26
₹110.26
10
₹16.81
₹168.06
25
₹16.86
₹421.48
50
₹16.86
₹842.96
100
₹12.69
₹1268.89
500
₹12.60
₹6298.20
1000
₹11.52
₹11518.70
