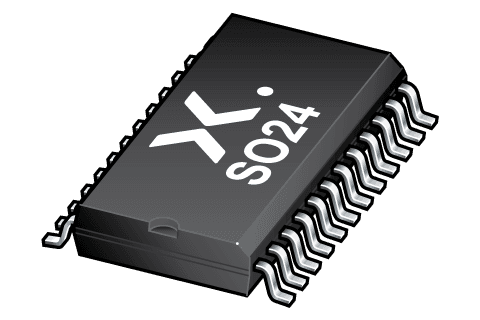

74HC154D,653
Manufacturer
Nexperia
Description
74HC Series 6V Surface Mount 4-to-16 Line Decoder/Demultiplexer - SOIC-24
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Contact Plating
Height - Seated (Max)
High Level Output Current
Independent Circuits
Lead Free
Length
Lifecycle Status
Load Capacitance
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Channels
Number of Circuits
Number of Elements
Number of Input Lines
Number of Inputs
Number of Output Lines
Number of Outputs
Number of Pins
Number of Terminals
Operating Supply Voltage
Polarity
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Supply Type
Terminal Pitch
Turn-On Delay Time
Voltage
Width
Description
SO
Compliant
Gold
2.65 mm
-5.2 mA
1
Lead Free
15.4 mm
EOL (Last Updated: 6 months ago)
50 pF
Decoder, Demultiplexer, Demux
4 mA
DISCONTINUATION OF DELIVERY (Last Updated: 6 months ago)
125 °C
6 V
-40 °C
2 V
Surface Mount
1
1
1
4
4
16
16
24
24
5 V
Inverting
38 ns
160 µA
No
Yes
Compliant
8542390000|8542390000|8542390000|8542390000|8542390000
Single
1.27 mm
225 ns
5 V
7.5 mm
Out of Stock
Quantity
MOQ : Unavailable
Minimum Qty : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
