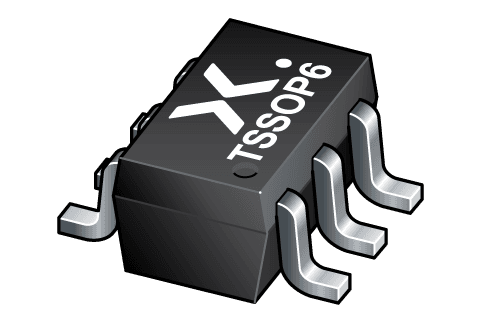

74HC2G04GW,125
Manufacturer
Nexperia
Description
74HC2G04 e3 74HC Tape & Reel (TR) logic gate circuit 13ns @ 6V 50pF 1.1mm 5.2mA 5.2mA 6V
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Case/Package
China RoHS
Contact Plating
Frequency
Height
Height - Seated (Max)
High Level Output Current
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Circuits
Number of Elements
Number of Inputs
Number of Outputs
Number of Pins
Number of Terminals
Operating Supply Voltage
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Terminal Pitch
Turn-On Delay Time
Width
Description
125 °C
TSSOP
Compliant
Tin
36 MHz
1.1 mm
1.1 mm
-5.2 mA
Lead Free
2 mm
Production (Last Updated: 7 months ago)
Inverter
5.2 mA
RELEASED FOR SUPPLY (Last Updated: 7 months ago)
125 °C
6 V
-40 °C
2 V
Surface Mount
1 µA
2
2
1
1
6
6
5 V
110 ns
1 µA
No
Yes
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
650 µm
13 ns
1.25 mm
In Stock
Quantity
MOQ : 5
Minimum Qty : 5
Per Unit Price
₹23.02
Total Price
₹115.09
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹123.51
₹123.51
10
₹14.11
₹141.06
25
₹14.11
₹352.64
50
₹14.11
₹705.29
100
₹10.51
₹1050.74
500
₹10.08
₹5037.77
1000
₹9.63
₹9631.74
