74HC2G66GD,125
Manufacturer
Nexperia
Description
74HC(T)2G66 - Dual single-pole single-throw analog switch
Datasheet
DownloadProduct Attributes
Type
Case/Package
Height - Seated (Max)
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Max Supply Current
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Channels
Number of Circuits
Number of Inputs
Number of Outputs
Number of Pins
Number of Terminals
On-State Resistance
Operating Supply Current
Operating Supply Voltage
Power Dissipation
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Supply Type
Terminal Pitch
Throw Configuration
Turn-Off Delay Time
Turn-On Delay Time
Width
Description

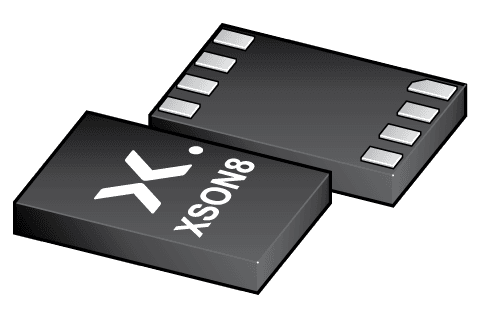

SOT-996-2
500 µm
3 mm
EOL (Last Updated: 3 years ago)
WITHDRAWN (Last Updated: 3 years ago)
125 °C
300 mW
30 mA
10 V
-40 °C
2 V
Surface Mount
30 mA
1
2
2
2
8
8
142 Ω
40 µA
5 V
300 mW
No
Yes
70 Ω
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
Single
500 µm
SPST
175 ns
150 ns
2 mm
Out of Stock
Quantity
MOQ : Unavailable
Minimum Qty : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
