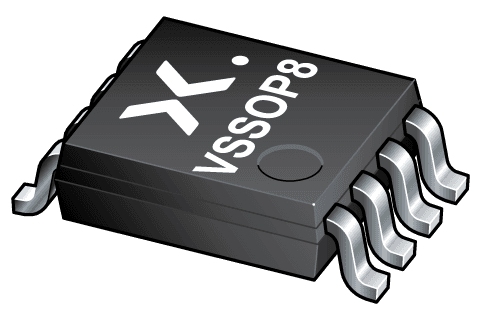

74HC3G04DC-Q100H
Manufacturer
Nexperia
Description
74HC3G04 74HC Tape & Reel (TR) HC/UH logic gate circuit 13ns @ 6V 50pF 1mm 5.2mA 5.2mA 6V
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Height - Seated (Max)
High Level Output Current
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Number of Circuits
Number of Inputs
Number of Pins
Number of Terminals
Operating Supply Voltage
Propagation Delay
Radiation Hardening
REACH SVHC
RoHS
Schmitt Trigger Input
Terminal Pitch
Width
Description
VSSOP
Compliant
1 mm
-5.2 mA
2.3 mm
Production (Last Updated: 7 months ago)
Inverter
4 mA
RELEASED FOR SUPPLY (Last Updated: 7 months ago)
125 °C
6 V
-40 °C
2 V
3
1
8
8
5 V
110 ns
No
Yes
Compliant
No
500 µm
2 mm
Out of Stock
Quantity
MOQ : Unavailable
Minimum Qty : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
