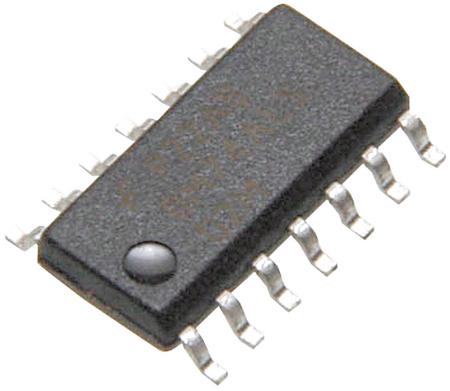

74HC86D
Manufacturer
NXP Semiconductors
Description
QUAD 2-INPUT EXCLUSIVE-OR GATE XOR Gate, HC Series, 4-Func, 2-Input, CMOS, PDSO14
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Height - Seated (Max)
High Level Output Current
Lead Free
Length
Lifecycle Status
Load Capacitance
Logic Function
Low Level Output Current
Max Operating Temperature
Max Supply Current
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Number of Circuits
Number of Gates
Number of Inputs
Number of Pins
Number of Terminals
Operating Supply Voltage
Output Current
Packaging
Propagation Delay
REACH SVHC
RoHS
Schmitt Trigger Input
Terminal Pitch
Termination
Voltage
Width
Description
SOIC
Compliant
1.75 mm
-7.8 mA
Lead Free
8.65 mm
Production (Last Updated: 9 months ago)
50 pF
XOR
4 mA
85 °C
40 µA
6 V
-40 °C
2 V
4
4
2
14
14
5 V
5.2 mA
Bulk
30 ns
Yes
Compliant
No
1.27 mm
SMD/SMT
6 V
3.9 mm
Out of Stock
