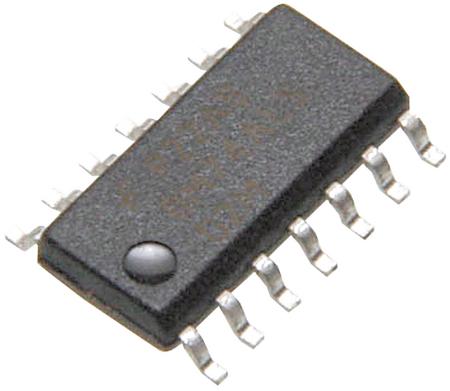

74HCT04D
Manufacturer
NXP Semiconductors
Description
Logic IC Inverter Digital; NOT; CH: 6; IN: 1; CMOS 74HCT; 4.5-5.5V; -40+85 deg.C; SMD; SO14
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Height - Seated (Max)
High Level Output Current
Input Capacitance
Lead Free
Length
Lifecycle Status
Load Capacitance
Logic Function
Low Level Output Current
Max Operating Temperature
Max Supply Current
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Circuits
Number of Elements
Number of Gates
Number of Inputs
Number of Pins
Number of Terminals
Operating Supply Voltage
Output Current
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schmitt Trigger Input
Terminal Pitch
Voltage
Width
Description
SO
Compliant
1.75 mm
-4 mA
3.5 pF
Lead Free
8.65 mm
Production (Last Updated: 9 months ago)
50 pF
Inverter
4 mA
125 °C
40 µA
5.5 V
-40 °C
4.5 V
Surface Mount
6
6
6
1
14
14
5 V
4 mA
29 ns
2 µA
No
Yes
Compliant
No
1.27 mm
5 V
3.9 mm
Out of Stock
