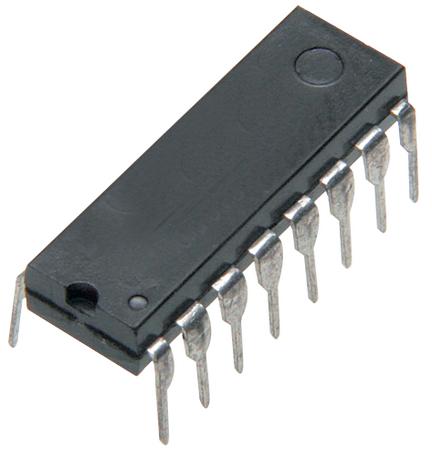

74HCT157N
Manufacturer
Nexperia
Description
Hct Series Quad 2 Line to 1 Line Multiplexer True Output PDIP16
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Height - Seated (Max)
Lead Free
Length
Lifecycle Status
Load Capacitance
Logic Function
Low Level Output Current
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Circuits
Number of Gates
Number of Input Lines
Number of Inputs
Number of Output Lines
Number of Outputs
Number of Pins
Number of Terminals
Operating Supply Voltage
Polarity
Propagation Delay
Radiation Hardening
REACH SVHC
RoHS
Terminal Pitch
Throw Configuration
Width
Description
PDIP
Compliant
4.7 mm
Lead Free
21.6 mm
Obsolete (Last Updated: 9 months ago)
50 pF
Multiplexer, Mux
4 mA
85 °C
5.5 V
-40 °C
4.5 V
Through Hole
4
4
8
2
4
1
16
16
5 V
Non-Inverting
46 ns
No
No
Compliant
2.54 mm
DPST
7.62 mm
Out of Stock
Quantity
MOQ : Unavailable
Minimum Qty : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
