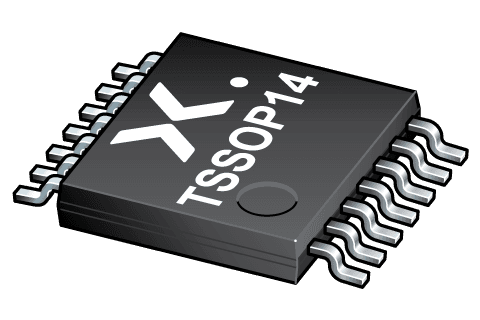

74HCT27PW,118
Manufacturer
Nexperia
Description
NOR 74HCT27 e4 74HCT logic gate circuit 21ns @ 4.5V 50pF 5mm 4mA 4mA 2V
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Contact Plating
Height - Seated (Max)
High Level Output Current
Length
Lifecycle Status
Load Capacitance
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Channels
Number of Circuits
Number of Elements
Number of Gates
Number of Input Lines
Number of Inputs
Number of Output Lines
Number of Pins
Number of Terminals
Operating Supply Voltage
Packaging
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Schmitt Trigger Input
Terminal Pitch
Turn-On Delay Time
Width
Description
TSSOP
Compliant
Gold
1.1 mm
-4 mA
5 mm
Production (Last Updated: 7 months ago)
50 pF
NOR
4 mA
RELEASED FOR SUPPLY (Last Updated: 7 months ago)
125 °C
5.5 V
-40 °C
4.5 V
Surface Mount
3
3
3
3
3
3
1
14
14
5 V
Tape & Reel (TR)
26 ns
2 µA
No
Yes
Compliant
8542390000|8542390000|8542390000|8542390000|8542390000
No
650 µm
10 ns
4.4 mm
Out of Stock
Quantity
MOQ : Unavailable
Minimum Qty : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
