74LV4066PW,112
Manufacturer
Nexperia
Description

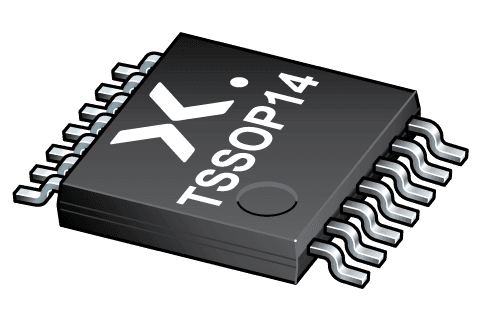

74LV Series 3.3 V CMOS Low On Resistance Quad Bilateral Switch - TSSOP-14
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Height - Seated (Max)
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Max Supply Current
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Channels
Number of Circuits
Number of Inputs
Number of Outputs
Number of Pins
Number of Terminals
On-State Resistance
Operating Supply Current
Operating Supply Voltage
Power Dissipation
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Supply Type
Terminal Pitch
Throw Configuration
Turn-Off Delay Time
Turn-On Delay Time
Width
Description
TSSOP
Compliant
1.1 mm
Lead Free
5 mm
Obsolete (Last Updated: 7 months ago)
OBSOLETE (Last Updated: 7 months ago)
125 °C
400 mW
80 µA
6 V
-40 °C
1 V
Surface Mount
1
4
4
4
14
14
83 Ω
80 µA
3.3 V
400 mW
No
Yes
40 Ω
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
Single
650 µm
SPST
47 ns
30 ns
4.4 mm
Out of Stock
Quantity
MOQ : Unavailable
Minimum Qty : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
