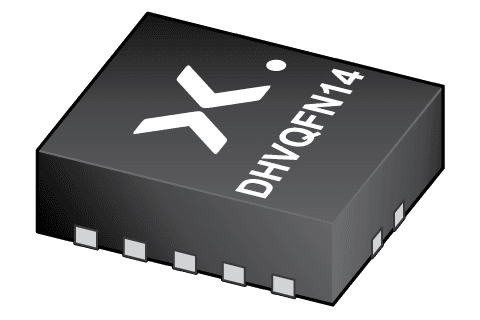

74LVC00ABQ-Q100X
Manufacturer
Nexperia
Description
NAND 74LVC00 74LVC Tape & Reel (TR) logic gate circuit 4.3ns @ 3.3V 50pF 3mm 24mA 24mA 3.6V
Datasheet
DownloadProduct Attributes
Type
China RoHS
Height - Seated (Max)
High Level Output Current
Length
Lifecycle Status
Load Capacitance
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Circuits
Number of Elements
Number of Inputs
Number of Outputs
Number of Pins
Number of Terminals
Operating Supply Voltage
Packaging
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schmitt Trigger Input
Terminal Pitch
Width
Description
Compliant
1 mm
-24 mA
3 mm
Production (Last Updated: 7 months ago)
50 pF
NAND
24 mA
RELEASED FOR SUPPLY (Last Updated: 7 months ago)
125 °C
3.6 V
-40 °C
1.2 V
Surface Mount
4
4
2
1
14
14
1.8 V
Tape and Reel
5.1 ns
40 µA
No
Yes
Compliant
No
500 µm
2.5 mm
Out of Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹58.23
Total Price
₹116.45
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹116.45
₹116.45
10
₹34.76
₹347.59
25
₹34.72
₹868.09
50
₹29.92
₹1496.21
100
₹23.41
₹2341.36
500
₹23.41
₹11705.03
1000
₹14.63
₹14631.29
