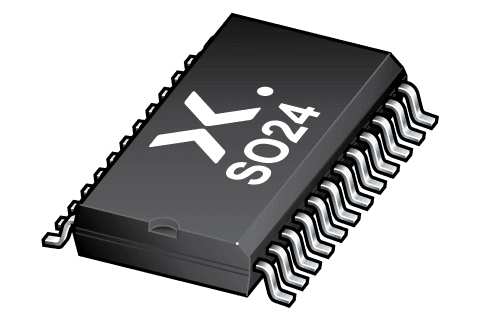

74LVC4245AD,118
Manufacturer
Nexperia
Description
74LVC Series 5.5V 3-State Octal Dual Supply Translating Transceiver SMT -SOIC-24
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Contact Plating
Direction
Height - Seated (Max)
High Level Output Current
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Channels
Number of Circuits
Number of Elements
Number of Pins
Number of Ports
Number of Terminals
Operating Supply Voltage
Output Type
Polarity
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Terminal Pitch
Turn-On Delay Time
Width
Description
SO
Compliant
Gold
Bidirectional
2.65 mm
-24 mA
Lead Free
15.4 mm
EOL (Last Updated: 7 months ago)
Transceiver, Translator
24 mA
DISCONTINUATION OF DELIVERY (Last Updated: 7 months ago)
125 °C
5.5 V
-40 °C
1.5 V
Surface Mount
8
8
1
1
24
2
24
5 V
TTL
Non-Inverting
8.5 ns
100 nA
No
Yes
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
1.27 mm
3.6 ns
7.5 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
