74LVC4245AD-Q100J
Manufacturer
Nexperia
Description

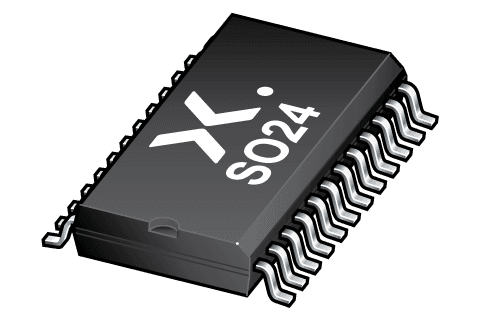

Bus Transceiver, LVC/LCX/Z Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24
Datasheet
DownloadProduct Attributes
Type
Case/Package
Channel Type
China RoHS
Contact Plating
Direction
Height - Seated (Max)
High Level Output Current
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Circuits
Number of Pins
Number of Ports
Number of Terminals
Operating Supply Voltage
Packaging
Polarity
Propagation Delay
Quiescent Current
REACH SVHC
RoHS
Terminal Pitch
Width
Description
SOIC
Bidirectional
Compliant
Gold
Bidirectional
2.65 mm
-24 mA
15.4 mm
Obsolete (Last Updated: 7 months ago)
Transceiver
24 mA
OBSOLETE (Last Updated: 7 months ago)
125 °C
3.6 V
-40 °C
1.5 V
Surface Mount
8
1
24
2
24
2.7 V
Tape & Reel (TR)
Non-Inverting
8.5 ns
40 µA
Yes
Compliant
1.27 mm
7.5 mm
Out of Stock
Quantity
MOQ : Unavailable
Minimum Qty : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
