74LVC74ADB,118
Manufacturer
Nexperia
Description

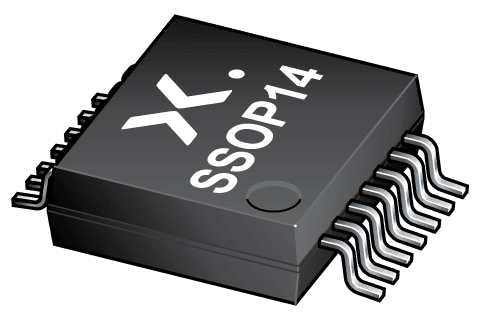

Flip-Flop with Set And Reset Dual D-Type Positive-Edge Trigger 1.2V to 3.6V 14-Pin SSOP
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Clock Edge Trigger Type
Contact Plating
Frequency
Height - Seated (Max)
High Level Output Current
Length
Lifecycle Status
Load Capacitance
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Bits per Element
Number of Channels
Number of Circuits
Number of Elements
Number of Input Lines
Number of Output Lines
Number of Pins
Number of Terminals
Operating Supply Voltage
Polarity
Propagation Delay
Radiation Hardening
REACH SVHC
RoHS
Terminal Pitch
Turn-On Delay Time
Width
Description
SSOP
Compliant
Positive Edge
Gold
120 MHz
2 mm
-24 mA
6.2 mm
Production (Last Updated: 3 years ago)
50 pF
AND, D-Type, Flip-Flop
24 mA
RELEASED FOR SUPPLY (Last Updated: 3 years ago)
120 MHz
125 °C
3.6 V
-40 °C
1.2 V
Surface Mount
1
1
2
2
2
1
1
14
14
2.7 V
Non-Inverting
6.5 ns
No
Yes
Compliant
650 µm
2.5 ns
5.3 mm
₹43.92
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹30.20
₹301.95
25
₹26.86
₹671.61
50
₹26.86
₹1343.22
100
₹23.23
₹2323.18
