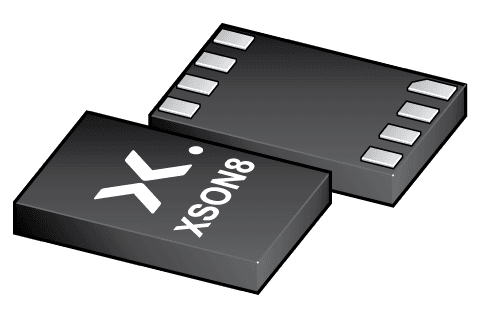

74LVCH2T45GD,125
Manufacturer
Nexperia
Description
74LVC2T45; 74LVCH2T45 - Dual supply translating transceiver; 3-state
Datasheet
DownloadProduct Attributes
Type
Case/Package
Data Rate
Direction
Height - Seated (Max)
High Level Output Current
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Channels
Number of Circuits
Number of Elements
Number of Pins
Number of Ports
Number of Terminals
Operating Supply Voltage
Polarity
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Terminal Pitch
Turn-On Delay Time
Width
Description
SOT-996-2
420 Mbps
Bidirectional
500 µm
-32 mA
3 mm
EOL (Last Updated: 3 years ago)
Transceiver, Translator
24 mA
WITHDRAWN (Last Updated: 3 years ago)
125 °C
250 mW
5.5 V
-40 °C
1.2 V
Surface Mount
2
2
1
1
8
2
8
1.5 V
Non-Inverting
23.5 ns
8 µA
No
Yes
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
500 µm
48.6 ns
2 mm
Out of Stock
Quantity
MOQ : Unavailable
Minimum Qty : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
