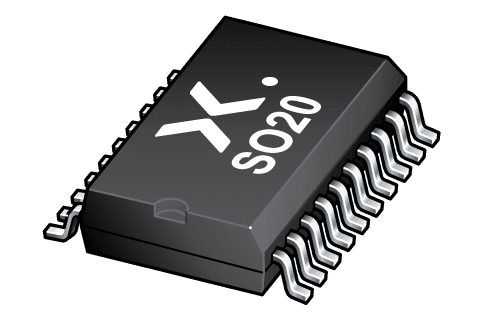

74LVT244AD-Q100J
Manufacturer
Nexperia
Description
Buffer / Line Driver, 74LVT244, 2 Element, 2.7 V to 3.6 V, 20 Pins, SOIC
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Contact Plating
Height - Seated (Max)
High Level Output Current
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Channels
Number of Circuits
Number of Elements
Number of Inputs
Number of Outputs
Number of Pins
Number of Ports
Number of Terminals
Operating Supply Voltage
Packaging
Polarity
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Terminal Pitch
Width
Description
SO
Compliant
Gold
2.65 mm
-32 mA
12.8 mm
Production (Last Updated: 7 months ago)
Buffer
64 mA
RELEASED FOR SUPPLY (Last Updated: 7 months ago)
85 °C
3.6 V
-40 °C
2.7 V
Surface Mount
4
8
2
2
8
8
20
2
20
3.3 V
Tape and Reel
Non-Inverting
4.1 ns
12 mA
No
Yes
Compliant
1.27 mm
7.5 mm
Out of Stock
Quantity
MOQ : Unavailable
Minimum Qty : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
