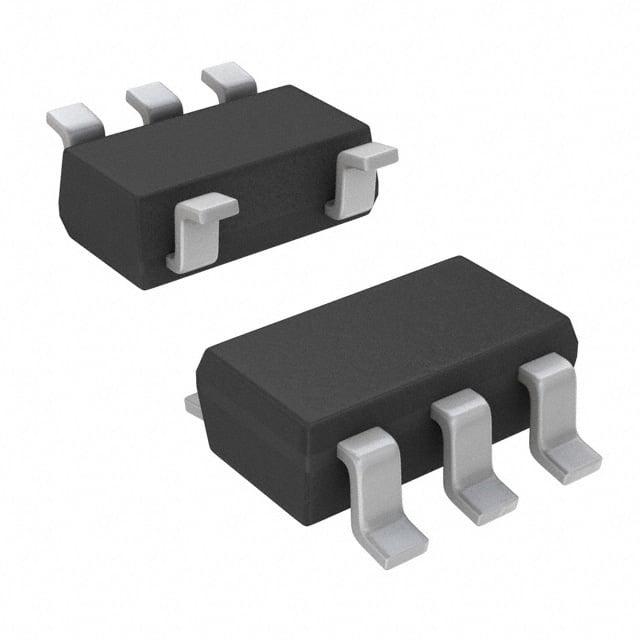

74V1T125STR
Manufacturer
STMicroelectronics
Description
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-23 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Contact Plating
Height - Seated (Max)
High Level Output Current
Length
Lifecycle Status
Load Capacitance
Logic Function
Low Level Output Current
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Bits per Element
Number of Channels
Number of Circuits
Number of Elements
Number of Input Lines
Number of Inputs
Number of Output Lines
Number of Outputs
Number of Pins
Number of Ports
Number of Terminals
Operating Supply Voltage
Polarity
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Terminal Pitch
Turn-On Delay Time
Width
Description
SOT-23-5
Compliant
Tin
1.45 mm
-8 mA
2.9 mm
Obsolete (Last Updated: 9 months ago)
50 pF
Buffer, Inverting
8 mA
125 °C
5.5 V
-55 °C
4.5 V
Surface Mount
1
1
1
1
1
1
1
3
1
5
2
5
5 V
Non-Inverting
8.5 ns
1 µA
No
Yes
Compliant
8542390000
950 µm
9.5 ns
1.625 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
