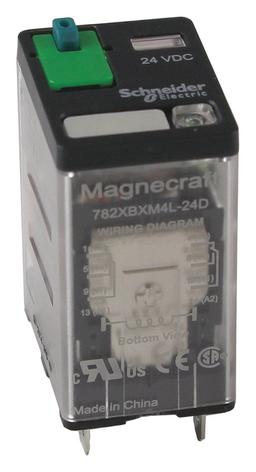

782XBXM4L-24D
Manufacturer
Schneider Electric
Description
General Purpose Control Relay DPDT 24VDC 15A -
Datasheet
DownloadProduct Attributes
Type
Approvals
Coil Current
Coil Power
Coil Resistance
Coil Type
Coil Voltage (DC)
Contact Current Rating
Contact Material
Current Rating
Depth
Height
Lead Free
Length
Max Current Rating
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Pins
Operate Time
Power Consumption
Power Rating
REACH SVHC
Relay Type
RoHS
Switching Voltage
Termination
Throw Configuration
Voltage Rating (AC)
Weight
Width
Description
CE, CSA, UL
36.9 mA
1.2 W
650 Ω
Non-Latching
24 V
15 A
Gold, Silver
15 A
39.1 mm
21 mm
Lead Free
27.9 mm
15 A
120 V
-40 °C
Plug-In, Socket
8
20 ms
900 mW
900 mW
Unknown
General Purpose
Compliant
300 V
Plug
DPDT
300 V
36 g
21 mm
₹2210.68
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹2210.68
₹2210.68
10
₹1887.19
₹18871.86
25
₹1862.14
₹46553.53
50
₹1837.10
₹91854.81
100
₹1831.76
₹183175.68
500
₹1831.75
₹915876.57
1000
₹1727.49
₹1727488.89
