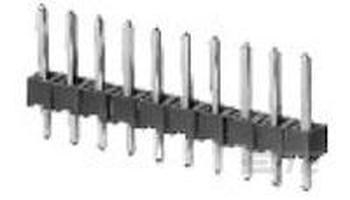

9-146278-0

Manufacturer

TE Connectivity

Description

Header; Breakaway; 0.100 in.; PC Board; Single; 40; 0.025 in.; 0.12 in.; 3 A

Datasheet

download datasheetDownload

Product Attributes

Type

Approvals

Color

Connector Type

Contact Current Rating

Contact Gender

Contact Material

Contact Mating Length

Contact Plating

Contact Shape

Contact Style

Current Rating

Depth

ELV

Flammability Rating

Gender

High Speed Serial Data Connector

High Temperature Housing

Housing Color

Keyed

Lead Free

Lead Length

Length

Lifecycle Status

Manufacturer Lifecycle Status

Mating Post Length

Max Operating Temperature

Min Operating Temperature

Mount

Number of Contacts

Number of Positions

Number of Rows

Operating Supply Voltage

Orientation

Packaging

PCB Mounting Orientation

PCB Thickness

Pitch

REACH SVHC

RoHS

Row Spacing

Schedule B

Termination

Description

CSA

Black

Header, Pin, Plug

3 A

Male

Bronze

5.842 mm

Tin

Square

Pin

3 A

2.34 mm

Compliant

UL94 V-0

Male

No

Yes

Black

No

Lead Free

3.048 mm

101.19 mm

Production (Last Updated: 4 days ago)

ACTIVE (Last Updated: 4 days ago)

5.842 mm

105 °C

-65 °C

Through Hole

40

40

1

30 V

Vertical

Carton

Vertical

1.5748 mm

2.54 mm

Unknown

Compliant

2.54 mm

8536694040, 8536694040|8536694040, 8536694040|8536694040|8536694040, 8536694040|8536694040|8536694040|8536694040

Through Hole

In Stock

Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹385.40

Total Price

₹385.40

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹385.40

₹385.40

10

₹376.24

₹3762.38

25

₹376.24

₹9405.94

50

₹376.24

₹18811.88

100

₹376.24

₹37623.78

500

₹376.24

₹188118.88

1000

₹376.24

₹376237.75
