9-1612503-1
Manufacturer
TE Connectivity / AMP
Description

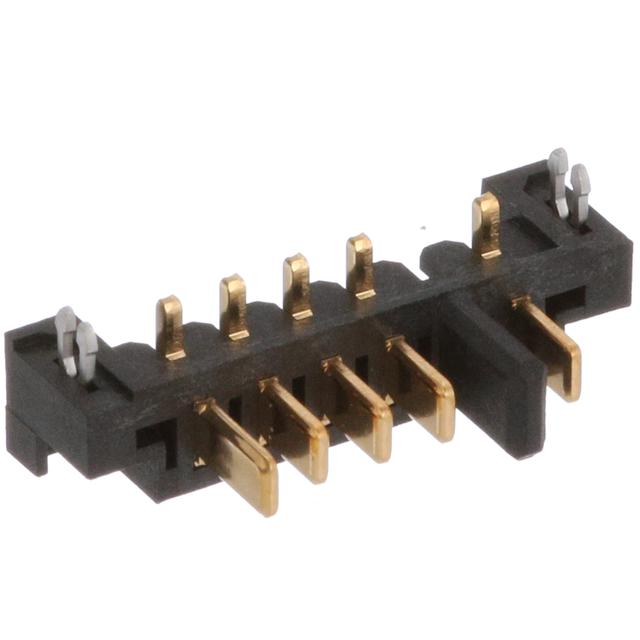

Connector Plug, 5 Position, Right Angle, 30 VDC, 7 A, 2.5MM Pitch, Pb-free
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Plating
Current Rating
Depth
ELV
Fastening Type
Flammability Rating
Housing Color
Housing Material
Insulation Material
Lead Free
Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Ports
Number of Positions
Number of Rows
Number of Terminals
Orientation
Packaging
PCB Mounting Orientation
PCB Mount Retention
Pitch
Radiation Hardening
RoHS
Schedule B
Sealable
Termination
Voltage Rating
Description
Black
Plug
Gold
6 A
10.65 mm
Compliant
Pull, Push
UL94 V-0
Black
Thermoplastic
Thermoplastic
Lead Free
21.6 mm
Production (Last Updated: 1 week ago)
7 A
80 °C
30 V
-20 °C
Through Hole
5
1
5
1
5
Right Angle
Bulk
Right Angle
With
2.5 mm
No
Compliant
8536694040, 8536694040|8536694040, 8536694040|8536694040|8536694040, 8536694040|8536694040|8536694040|8536694040
No
Solder
30 V
₹382.13
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹382.13
₹382.13
10
₹326.81
₹3268.08
25
₹318.27
₹7956.68
50
₹304.43
₹15221.27
100
₹248.04
₹24803.82
500
₹248.04
₹124019.10
1000
₹233.77
₹233770.61
