A201SYCB04
Manufacturer
TE Connectivity
Description

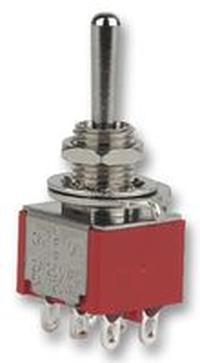

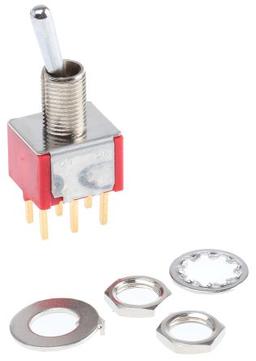

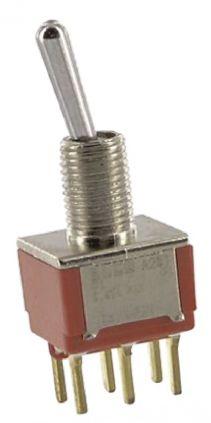

Switch Toggle ON None ON DPDT Long Baton Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Threads Bulk
Datasheet
DownloadProduct Attributes
Type
Actuator Length
Actuator Material
China RoHS
Contact Current Rating
Contact Material
Contact Plating
Contact Resistance
Contact Voltage Rating (AC)
Depth
Electrical Life
ELV
Flammability Rating
Height
Illumination Type
Insulation Resistance
Isolation Voltage
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Poles
Number of Positions
Orientation
Packaging
Power Rating
Radiation Hardening
REACH SVHC
RoHS
Sealable
Switch Function
Termination
Throw Configuration
Type
Voltage Rating
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
2.92 mm
Brass, Phenolic
Non-Compliant
400 mA
Copper
Gold
10 mΩ
20 V
11.43 mm
6 kcycles
Compliant
UL94 V-0
10.41 mm
Illuminated, Non-Illuminated
1 GΩ
1 kV
12.7 mm
Production (Last Updated: 4 days ago)
ACTIVE (Last Updated: 4 days ago)
400 mA
85 °C
20 V
20 V
-30 °C
Bushing, PCB, Panel, Through Hole
2
2
Straight
Bulk
400 mW
No
No
Compliant
EPOXY TERMINAL SEALED
On-On
PC Pin, PC Pins
DPDT
Switch
20 V
20 V
20 V
12.7 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹393.15
Total Price
₹393.15
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹393.15
₹393.15
10
₹306.12
₹3061.16
25
₹306.12
₹7652.92
50
₹306.12
₹15305.84
100
₹292.11
₹29210.69
500
₹327.44
₹163718.61
