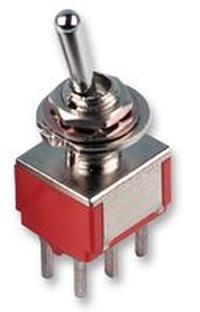

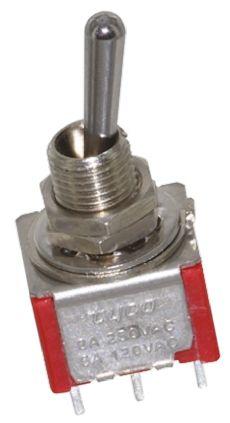

A203SYZQ04
Manufacturer
TE Connectivity
Description
Toggle Switch, DPDT, On-off-on, 5A, 28VDC, Wire Terminal, Panel Mount
Datasheet
DownloadProduct Attributes
Type
Actuator Length
Actuator Material
Case/Package
China RoHS
Contact Current Rating
Contact Material
Contact Plating
Contact Resistance
Contact Voltage Rating (AC)
Current Rating
Electrical Life
ELV
Flammability Rating
Height
Illumination Type
Insulation Resistance
Isolation Voltage
Lead Free
Life (Cycles)
Lifecycle Status
Manufacturer Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Poles
Number of Positions
Packaging
Radiation Hardening
Ratings
REACH SVHC
RoHS
Sealable
Switch Function
Termination
Throw Configuration
Type
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
10.41 mm
Brass, Phenolic
125
Non-Compliant
5 A
Copper
Silver
10 mΩ
125 V
5 A
6 kcycles
Compliant
UL94 V-0
8.89 mm
Non-Illuminated
1 GΩ
1 kV
Lead Free
6 kcycles
Production (Last Updated: 4 days ago)
ACTIVE (Last Updated: 4 days ago)
5 A
85 °C
250 V
28 V
-30 °C
Bushing, PCB, Panel, Solder
2
3
Bulk
No
IP67
No
Compliant
EPOXY TERMINAL SEALED
On-Off-On
Lug
DPDT
Switch
120 V
28 V
12.7 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹606.40
Total Price
₹606.40
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹606.40
₹606.40
10
₹498.04
₹4980.41
25
₹498.09
₹12452.36
50
₹497.03
₹24851.36
100
₹474.63
₹47462.83
