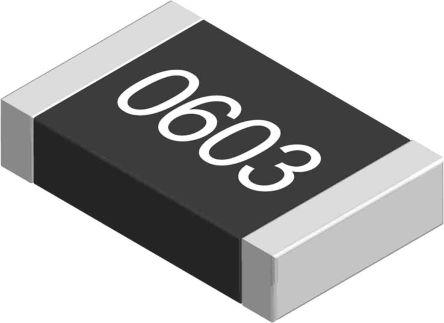

AC0603JR-0722RL
Manufacturer
Yageo
Description
Res Thick Film 0603 22 Ohm 5% 0.1W(1/10W) 100ppm/C Pad SMD Automotive T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Features
Height
Length
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Number of Terminations
Packaging
Power Rating
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Width
Description
0603
0603
1608
Thick Film
Automotive AEC-Q200, Moisture Resistant
550 µm
1.6002 mm
155 °C
100 mW
-55 °C
2
Tape & Reel
100 mW
22 Ω
Compliant
8533210045, 8533210045|8533210045|8533210045|8533210045|8533210045
100 ppm/°C
SMD/SMT
5 %
75 V
800 µm
In Stock
Quantity
MOQ : 11
Per Unit Price
₹9.78
Total Price
₹107.59
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹107.59
₹107.59
10
₹10.00
₹100.02
25
₹4.00
₹100.06
50
₹2.00
₹100.06
100
₹1.00
₹100.02
500
₹0.54
₹268.57
1000
₹0.45
₹447.26
Product Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Features
Height
Length
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Number of Terminations
Packaging
Power Rating
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Width
Description
0603
0603
1608
Thick Film
Automotive AEC-Q200, Moisture Resistant
550 µm
1.6002 mm
155 °C
100 mW
-55 °C
2
Tape & Reel
100 mW
22 Ω
Compliant
8533210045, 8533210045|8533210045|8533210045|8533210045|8533210045
100 ppm/°C
SMD/SMT
5 %
75 V
800 µm
