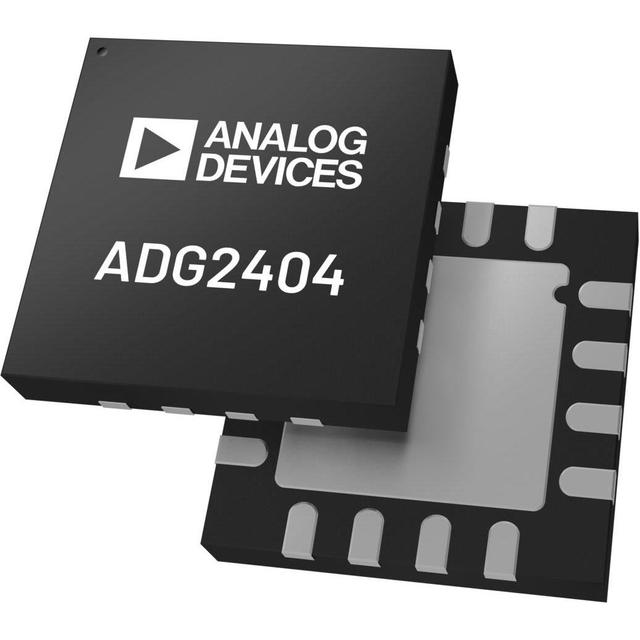

ADG2404BCPZ
Manufacturer
Analog Devices
Description
ANALOG DEVICES - ADG2404BCPZ - Multiplexer, Analogue, 1-CH, 4:1, 5V to 16.5V, 4.5V to 16.5V, SMD, -40 to 125 C, LFCSP-EP-16
Datasheet
DownloadProduct Attributes
Type
Switch Circuit
Multiplexer/Demultiplexer Circuit
Number of Circuits
On-State Resistance
Channel Resistance Matching
Voltage - Supply, Single (V+)
Dual Supply Voltage
Switch Time (Ton, Toff) (Max)
-3db Bandwidth
Charge Injection
Channel Capacitance (CS(off), CD(off))
Current - Leakage (IS(off)) (Max)
Crosstalk
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
SP4T - Open
4:1
1
700mOhm
120mOhm
5V ~ 16.5V
±4.5V ~ 16.5V
362ns, 291ns
34MHz
-1.78nC
76pF, 306pF
4nA
-82dB @ 100kHz
-40°C ~ 125°C
Surface Mount
16-WQFN Exposed Pad, CSP
16-LFCSP-WQ (4x4)
₹1048.59
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹1048.59
₹1048.59
10
₹816.64
₹8166.38
25
₹758.57
₹18964.29
50
₹758.57
₹37928.58
100
₹694.91
₹69491.24
Product Attributes
Type
Switch Circuit
Multiplexer/Demultiplexer Circuit
Number of Circuits
On-State Resistance
Channel Resistance Matching
Voltage - Supply, Single (V+)
Dual Supply Voltage
Switch Time (Ton, Toff) (Max)
-3db Bandwidth
Charge Injection
Channel Capacitance (CS(off), CD(off))
Current - Leakage (IS(off)) (Max)
Crosstalk
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
SP4T - Open
4:1
1
700mOhm
120mOhm
5V ~ 16.5V
±4.5V ~ 16.5V
362ns, 291ns
34MHz
-1.78nC
76pF, 306pF
4nA
-82dB @ 100kHz
-40°C ~ 125°C
Surface Mount
16-WQFN Exposed Pad, CSP
16-LFCSP-WQ (4x4)
