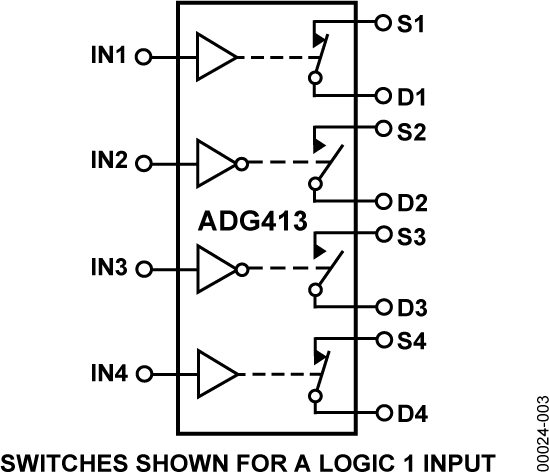

ADG413BNZ

Manufacturer

Analog Devices

Description

35 4 SPST(SPST)-Normal Open/Normally closed PDIP-16 Analog Switches / Multiplexers ROHS

Product Attributes

Type

Case/Package

Contact Plating

Drain to Source Resistance

Dual Supply Voltage

Height

High Level Output Current

Interface

Length

Lifecycle Status

Manufacturer Lifecycle Status

Max Dual Supply Voltage

Max Operating Temperature

Max Power Dissipation

Max Supply Current

Max Supply Voltage

Min Dual Supply Voltage

Min Operating Temperature

Min Supply Voltage

Number of Bits

Number of Channels

Number of Circuits

Number of Inputs

Number of Outputs

Number of Pins

Operating Supply Voltage

Packaging

Polarity

Power Dissipation

REACH SVHC

RoHS

Schedule B

Supply Type

Throw Configuration

Turn-Off Delay Time

Turn-On Delay Time

Width

Description

N

Tin

35 Ω

15 V

3.3 mm

30 mA

Parallel

20.07 mm

Production (Last Updated: 2 years ago)

CONTACT ADI (Last Updated: 6 days ago)

22 V

85 °C

470 mW

1 µA

25 V

13.5 V

-40 °C

5 V

4

4

4

4

4

16

12 V

Bulk

Non-Inverting

35 µW

No SVHC

Compliant

8542390000

Dual, Single

SPST

145 ns

175 ns

6.35 mm

In Stock


Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹831.30

Total Price

₹831.30


delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

831.30

831.30

10

842.61

8426.06

25

842.61

21065.15

50

715.68

35784.08

100

662.34

66233.84
