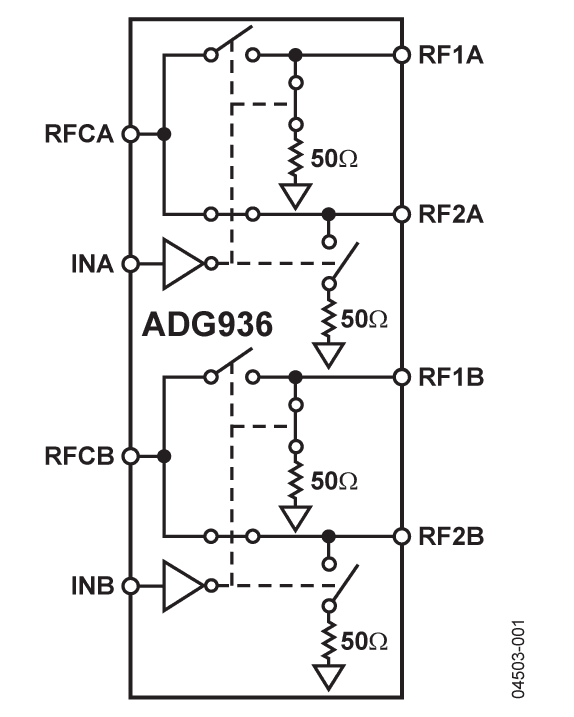

ADG936BRUZ-R
Manufacturer
Analog Devices
Description
RF SWITCH, SPDT, DC-2GHZ, TSSOP; Available until stocks are exhausted Alternative available
Product Attributes
Type
-3db Bandwidth
Bandwidth
Case/Package
Contact Plating
Frequency
Height
IIP3
Impedance
Insertion Loss (dB)
Interface
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Frequency
Max Operating Temperature
Max Power Dissipation
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Outputs
Number of Pins
Operating Supply Voltage
P1dB
Power Dissipation
REACH SVHC
RoHS
Schedule B
Test Frequency
Throw Configuration
Turn-Off Delay Time
Turn-On Delay Time
Width
Description
4 GHz
4 GHz
TSSOP
Tin
4 GHz
1.05 mm
32 dBm
50 Ω
0.4 dB
Parallel
6.6 mm
Production (Last Updated: 2 years ago)
PRODUCTION (Last Updated: 2 years ago)
2 GHz
85 °C
2.75 µW
2.75 V
-40 °C
0 V
Surface Mount
2
2
20
2.75 V
16 dBm
2.75 µW
No SVHC
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
100 MHz
SPDT
10 ns
11 ns
4.5 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹362.13
Total Price
₹362.13
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹362.13
₹362.13
10
₹357.77
₹3577.66
25
₹357.77
₹8944.15
50
₹357.77
₹17888.29
100
₹321.04
₹32103.68
