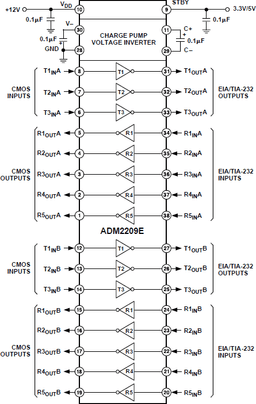

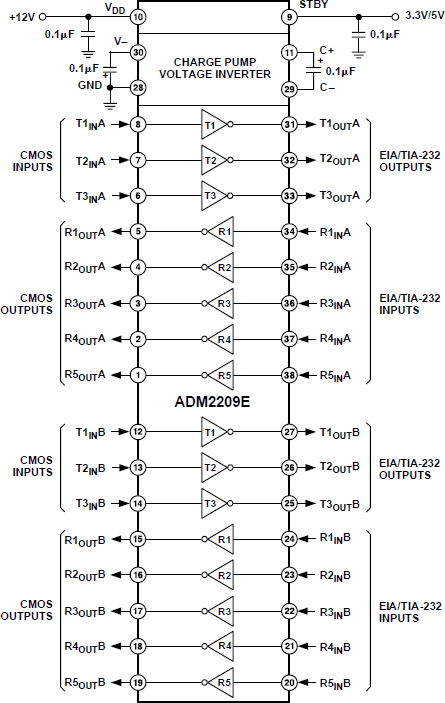

ADM2209EARUZ
Manufacturer
Analog Devices
Description
Hex Transmitter Ten Receiver RS-232 38-Pin TSSOP Tube
Product Attributes
Type
Case/Package
Contact Plating
Data Rate
ESD Protection
Height
Interface
Length
Lifecycle Status
Logic Function
Manufacturer Lifecycle Status
Max Dual Supply Voltage
Max Operating Temperature
Max Supply Current
Max Supply Voltage
Min Dual Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Drivers
Number of Pins
Number of Receivers
Number of Transceivers
Number of Transmitters
Operating Supply Current
Operating Supply Voltage
Radiation Hardening
REACH SVHC
Receiver Hysteresis
RoHS
Schedule B
Simplex/Duplex
Width
Description
TSSOP
Tin
460 kbps
Yes
1.2 mm
RS-232
9.7 mm
Production (Last Updated: 2 years ago)
Receiver, Transceiver
PRODUCTION (Last Updated: 2 years ago)
5.5 V
85 °C
5 mA
13.2 V
3.15 V
-40 °C
10.8 V
Surface Mount
5 mA
6
38
10
1
6
5 mA
3.3 V
No
No SVHC
250 mV
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
Full Duplex
4.4 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹1191.53
Total Price
₹1191.53
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1191.53
₹1191.53
10
₹828.02
₹8280.23
25
₹828.09
₹20702.35
50
₹666.60
₹33329.88
100
₹615.42
₹61541.53
