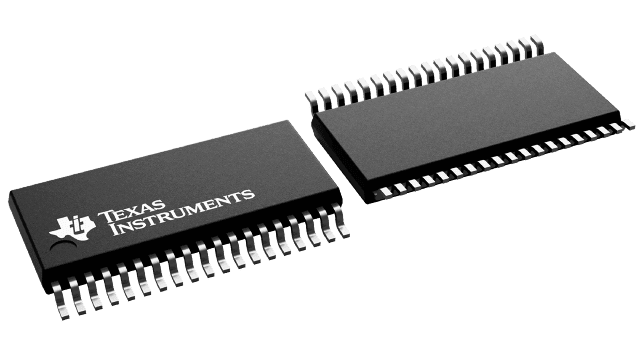

ADS8684IDBT
Manufacturer
Texas Instruments
Description
IC ADC 16BIT SAR 38TSSOP 16 Bit Analog to Digital Converter 4 Input 1 SAR 38-TSSOP
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Case/Package
Contact Plating
Differential Nonlinearity
Height
Integral Nonlinearity (INL)
Interface
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of A/D Converters
Number of Analog Inputs
Number of Bits
Number of Channels
Number of Converters
Number of Inputs
Number of Pins
Polarity
Power Consumption
Reference Voltage
Resolution
RoHS
Sampling Rate
Schedule B
Signal to Noise Ratio (SNR)
Supply Type
Thickness
Weight
Width
Description
125 °C
TSSOP
Gold
0.5 LSB
1.2 mm
0.75 LSB
SPI
Lead Free
9.7 mm
Production (Last Updated: 4 days ago)
ACTIVE (Last Updated: 4 days ago)
125 °C
65 mW
5.25 V
-40 °C
1.65 V
Surface Mount
1
4
16
4
1
4
38
Bipolar, Unipolar
65 mW
4.096 V
2 B
Compliant
500 ksps
8542390000
92 dB
Analog, Digital
1 mm
203.804722 mg
4.4 mm
₹1660.72
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹1660.72
₹1660.72
10
₹1317.78
₹13177.83
25
₹1317.82
₹32945.49
50
₹1180.73
₹59036.71
100
₹1001.57
₹100156.82
500
₹1001.57
₹500784.08
1000
₹964.36
₹964364.25
